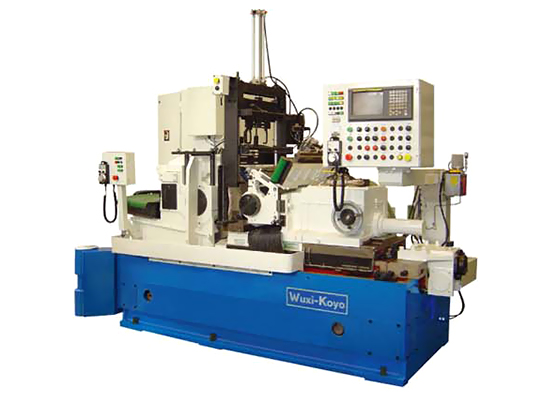

KC-300 CNC Crankshaft Centerless Grinder



Main Parameters

Processing Range
φ2.0-φ120mm
Max Length of Cut-in Mill 300mm
Motor
For Grinding Wheel 22kW 4P
For Guide Wheel 2.2kW 6P
For Cooling0.4kW 2P
Spindle Unit
Spindle Roller Bearing Double Support Type Grinding Wheel
Spindle Roller Bearing Double Support Type Guiding Wheel
Specification of Grinding Wheel
610×305×304.8mm(Outer Diameter×Width×Bore Diameter)
Specification of Guiding Wheel
330×305×203.2mm(Outer Diameter×Width×Bore Diameter)
Rotational Speed
Grinding Wheel1400rpm(MAX.1560rpm)
Linear Speed 45m/s(MAX.50m/s)
Stepless Variable-frequency Speed Regulation of Guide Wheel 12-230rpm
Electric Control Device
FANUC numerical control system
Power Supply Voltage
AC380V, Frequency 50Hz
Control Voltage
AC100V/110V;DC24V
Tilting Angle of Guiding Wheel
﹢5°-﹣5°
Floor Area
3050×2700mm(Width×Length)
Machine Tool Weight
About 7.5t

High and new product-KC300 centerless grinder
