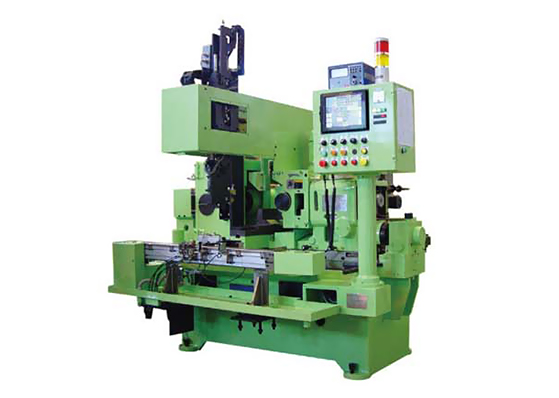

CNC Bearing Sleeve Centerless Grinder



Main Parameters

Processing Range
φ1.2-φ40mm
Max Length of Cut-in Mill150mm
Motor
For Grinding Wheel5.5kW4P(7.5kW 4P)
For Guide Wheel0.4/0.2kW 4/8P
Hydraulic Pump (for Trimming Device)0.75kW 4P
For Water Pump0.18kW 2P
Specification of Grinding Wheel
455×150×228.6mm(Outer Diameter×Width×Bore Diameter)
Specification of Guide Wheel
305×150×177.8mm(Outer Diameter×Width×Bore Diameter)
Rotational Speed
Grinding Wheel1400rpm(MAX.1880rpm)
Linear Speed33m/s(MAX.45m/s)
Variable-frequency Stepless Speed Regulation of Guiding Wheel15-165rpm
Tilting Angle of Guiding Wheel
﹢6°-﹣1°
Floor Area
2040×1500mm(Width×Length)
Machine Tool Weight
About 2.5 t

Conveyer belt
