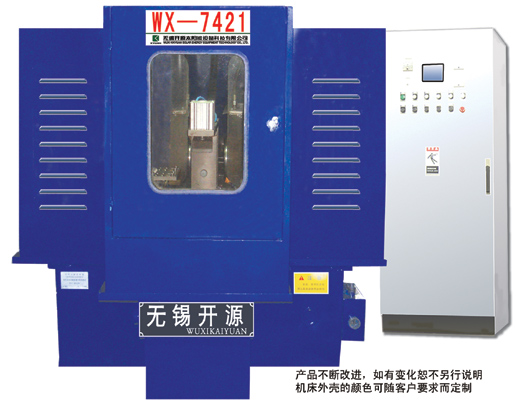

CNC monocrystalline/ polycrystalline silicon surface grinder WX-7421

Machine Tools Use and Performance：

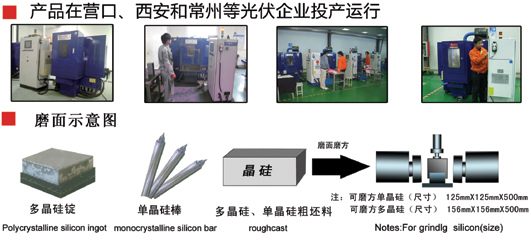

1. This machine is used in single-crystal and crystal silicon cuboid plane grinding of solar energy industry, it can dress the plane vertical of the silicon ingots, so that to make sure that the affected layers of silicon ingots.
2. The control system applies the system of Japan Mitsubishi.

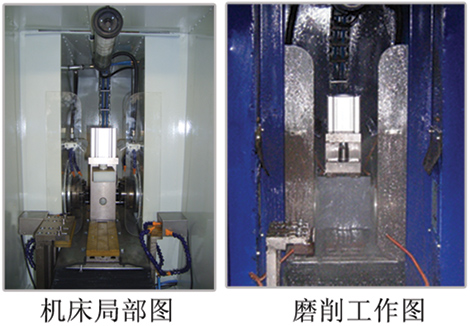

3. It uses the mechanical separator system, it has the characteristic of auto center, automatically pressing, accurate positioning and high polished of grinding face.
4. The wheel feed uses the servo motor from Mitsubishi to drive the ball screws, it can position accurately, and insure the size error of two faces.
5. The electrical elements of machine are all from some famous brand, so that to make sure the reliability of the machine.

The Error and Surface Roughness of the Parts after Grinding
Parallelism of Two Faces	0.01mm
Perpendicularity	0.02mm
Size Error	0.02mm
Roughness	Ra0.2m

Parts Specification	125×125/156×156mm
Parts Length	max500mm
The amount of abrasion wheel main axis	2
The size of abrasion wheel	Ф200×Ф70×Ф190mm
Grinding Speed	0.01--15m/min
The minimum load of face grinding wheel	1um
Linear speed of the abrasion wheel	35m/s
Gross Power	3kw
Machine Size（LXWXH）	2000X1950X1350mm
Machine Weight	3000kg
Cooling Water Connecter	R1/4〞，25L/min
