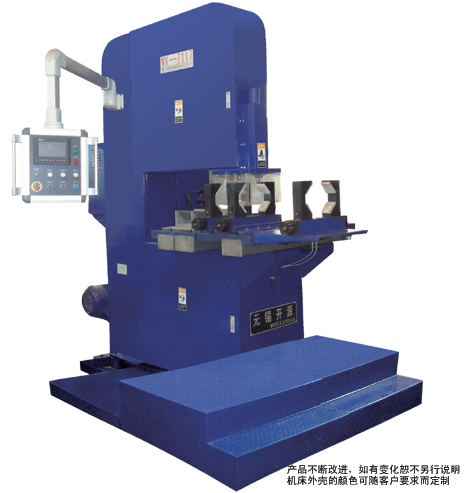

High-speed CNC monocrystalline silicon cutting machine WX-7117

Machine Tools Use and Performance

1.This machine is the special purpose machine for the single-crystal silicon.
2.This machine possesses the characteristics of high speed, high efficiency and low wastage.
3.The feeding of the table is controlled by linear guideway, ball screw and servo motor, the speed can be adjusted at will.
4.It uses superior adamas saw belt, so it is a machine with the characteristic of high sawing efficiency, small gap, highly rate of finished products.
5.The sawing belt tenses automatically by oil tank, the tensile force can be adjusted at will, so it is stable and reliable.
6.The newest saw belt fixture can make sure that the saw belt won’t shake fiercely; this machine equips the special fixture for the single-crystal silicon,
7.It equips the air dust removal device connector.
8.The electric system uses the imported PLC.

Technical Specifications

the maximum diameter of the polycrystalline silicon : Φ230mm
