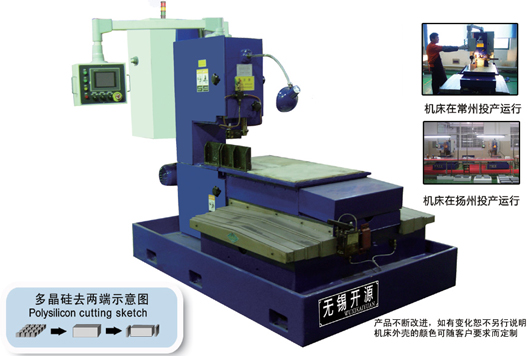

CNC polycrystalline silicon cutting machine WX-7112

Machine Tools Use and Performance:
1.This machine is the dedicated device for the polycrystalline silicon blanks, it can be widely used in solar power industry and semiconductor industry.
2.The bed, pulley block and other parts are iron castings, so the machine is with big weight, strong stiffness, and good antiknock characteristic.
3.It uses superior adamas saw belt, so it is a machine with the characteristic of high sawing efficiency, small gap, high rate of finished products.
4.It equips automatic centering device of clamping s polycrystalline silicon blanks.
5.The feeding, loading mechanisms use linear guideway and ball screw, and it is driven by servo motor, so the parts can be moved exactly and reliable.
6.Saw belt wheel motor uses frequency control, the technique is mature, and the character is stable.
7.The machine control is set by computer, the operation uses touch screen, the process of cutting is possesses the characteristic of high efficiency, and improve the produce efficiency.

Technical Specifications

The maximum diameter of the polycrystalline silicon l: 180X180mm
